ULTRA-X80 Versatile Point Source Loudspeaker

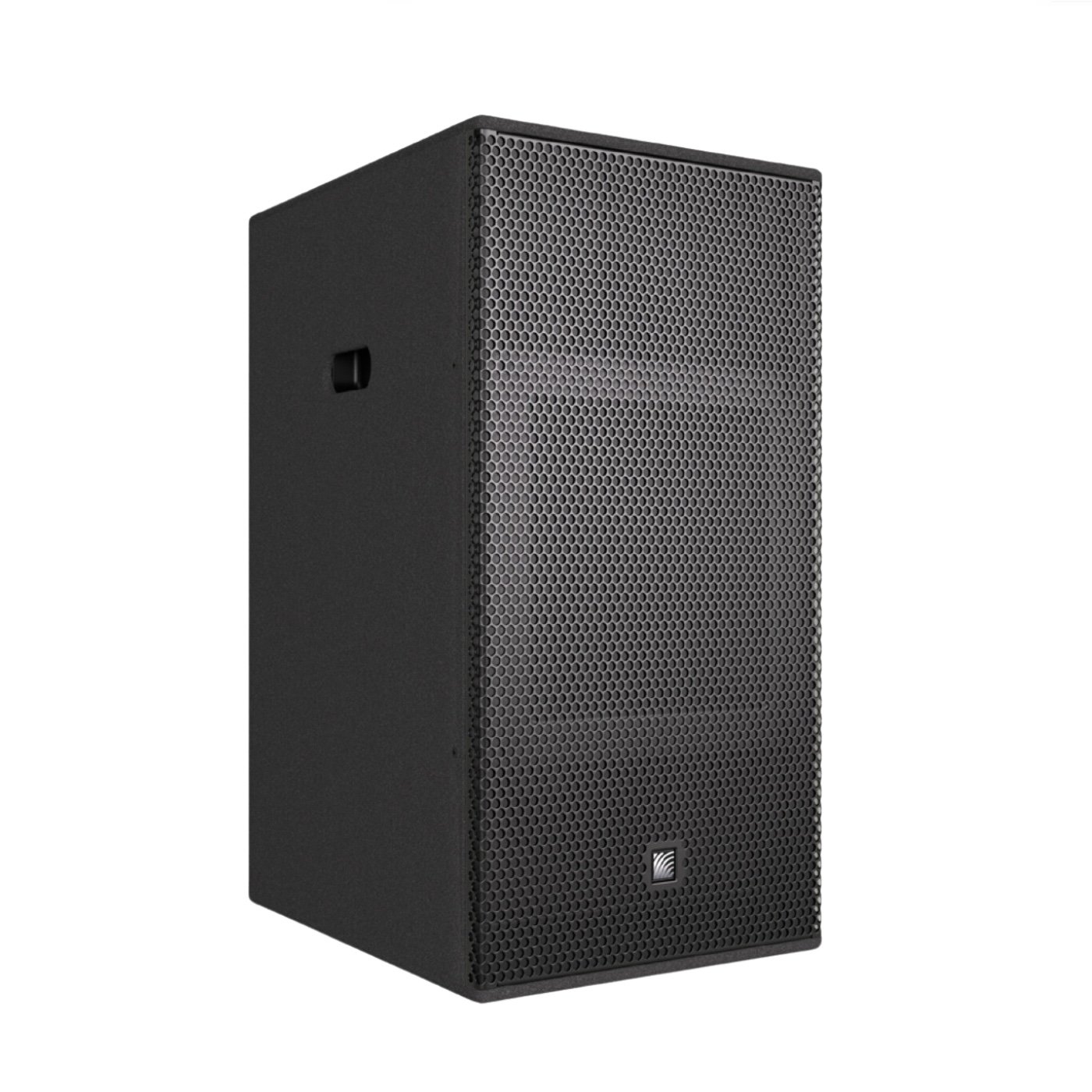

The Meyer Sound ULTRA-X80 is a high-performance point source loudspeaker designed to deliver exceptional power and clarity in a compact form factor. Building upon the ULTRA series' innovative concentric-driver design, it features two 12-inch neodymium-magnet cone drivers and a 4-inch high-frequency compression driver coupled to a rotatable 95° x 40° waveguide. This configuration ensures smooth frequency response and precise directional control.
Powered by an ultralight Class D amplifier, the ULTRA-X80 achieves a linear peak output of 141 dB SPL, all within a cabinet weighing just 130 pounds (59 kg). This impressive power-to-weight ratio makes it suitable for a wide range of applications, from theaters and music venues to stadiums and arenas.
For applications requiring more focused coverage, the ULTRA-X82 variant offers a tighter 50° x 40° dispersion pattern and a slightly higher peak output of 142 dB SPL. Both models are designed for seamless integration with the Meyer Sound ecosystem, featuring analog and MILAN connectivity, and are compatible with the Nebra integrated software platform for streamlined system management.
Key Features:
Concentric Driver Configuration: The ULTRA-X80's design integrates dual 12-inch cone drivers with a 4-inch compression driver, providing consistent coverage and high-fidelity sound reproduction.
Rotatable Waveguide: The 95° x 40° waveguide can be rotated to accommodate various installation orientations, maintaining uniform coverage patterns.
High SPL Output: Powered by an ultralight Class D amplifier, the ULTRA-X80 delivers a linear peak output of 141 dB SPL, suitable for large venues and demanding applications.
Integrated DSP: Advanced digital signal processing includes crossover management, phase and frequency response correction, and driver protection, ensuring optimal performance and reliability.
Versatile Mounting Options: The enclosure features multiple M10 rigging points, facilitating flexible deployment in various configurations.
Applications:
The ULTRA-X80 is suitable for a wide range of applications, including:
Theatrical sound reinforcement
Houses of worship
Corporate AV presentations
Music venues and concert halls
Front-fill and under-balcony fill
