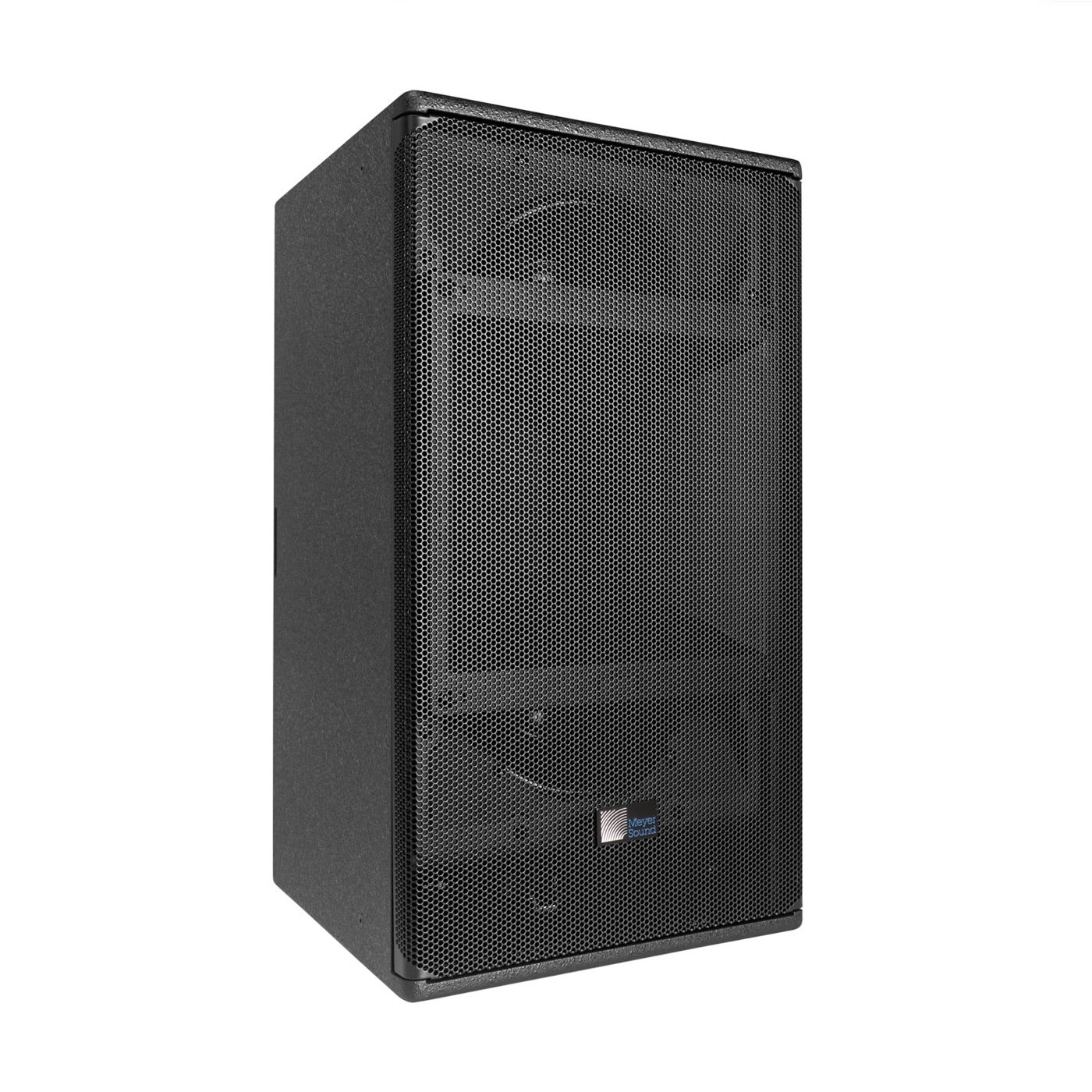

ULTRA-X40 Compact Point Source Loudspeaker
The Meyer Sound ULTRA-X40 is a compact, self-powered loudspeaker engineered for exceptional versatility and performance across various applications. Building upon the legacy of the renowned UPA series, the ULTRA-X40 incorporates advanced technologies to deliver superior sound quality in a more compact and lightweight design.
Key Features:
Concentric Driver Configuration: The ULTRA-X40 features two 8-inch neodymium magnet cone drivers and a 3-inch diaphragm compression driver arranged in a concentric configuration. This design ensures smooth frequency response and precise directional control down to 400 Hz.
Rotatable Horn: Equipped with a rotatable 110° x 50° Constant-Q horn, the ULTRA-X40 allows for flexible orientation, maintaining consistent coverage patterns whether deployed horizontally or vertically.
Advanced Amplification: Powered by a highly efficient 3-channel Class D amplifier, the ULTRA-X40 delivers a peak output of 1,950 watts, achieving a linear peak SPL of 130.5 dB. This power is housed in an enclosure weighing just 55 pounds (25 kg), enhancing portability and ease of installation.
Sophisticated DSP: The integrated digital signal processing includes electronic crossover management, phase and frequency response correction filters, and driver protection circuitry, ensuring ultra-flat amplitude and phase response for exceptional impulse response and precise imaging.
Flexible Mounting Options: The enclosure features 11 integral M8 rigging points and an integral 35 mm pole-mount receptacle with M20 threads, supporting a wide range of mounting and rigging configurations to suit diverse application needs.
Applications:
The ULTRA-X40 is suitable for a broad spectrum of applications, including:
Concert halls and houses of worship
Theatrical sound reinforcement
Portable and installed audio-visual systems
Nightclubs
Compact voice reinforcement systems
